Gout Testing Explained: Joint Aspiration, Uric Acid Tests, and Imaging

Getting an accurate diagnosis is crucial for effective gout management. While the symptoms of gout—especially the sudden, severe pain in a joint—can be distinctive, they can also mimic other conditions like infection, other forms of arthritis, or injury. This article explains the various testing methods used to diagnose gout, what each test involves, and what the results might mean for your treatment plan.

The Diagnostic Gold Standard: Joint Fluid Analysis

What It Is

Joint fluid analysis (also called synovial fluid analysis or arthrocentesis) involves removing a small sample of fluid from the affected joint and examining it under a microscope to look for urate crystals—the definitive sign of gout.

How It's Performed

1. The skin over the affected joint is cleaned with an antiseptic solution
2. A local anesthetic may be injected to numb the area
3. A thin needle is inserted into the joint space
4. A small amount of fluid (typically 1-5 mL) is withdrawn
5. The needle is removed and a bandage is applied
6. The fluid is sent to a laboratory for analysis

The entire procedure typically takes less than 10 minutes and is usually performed in a doctor's office or clinic.

What It Shows

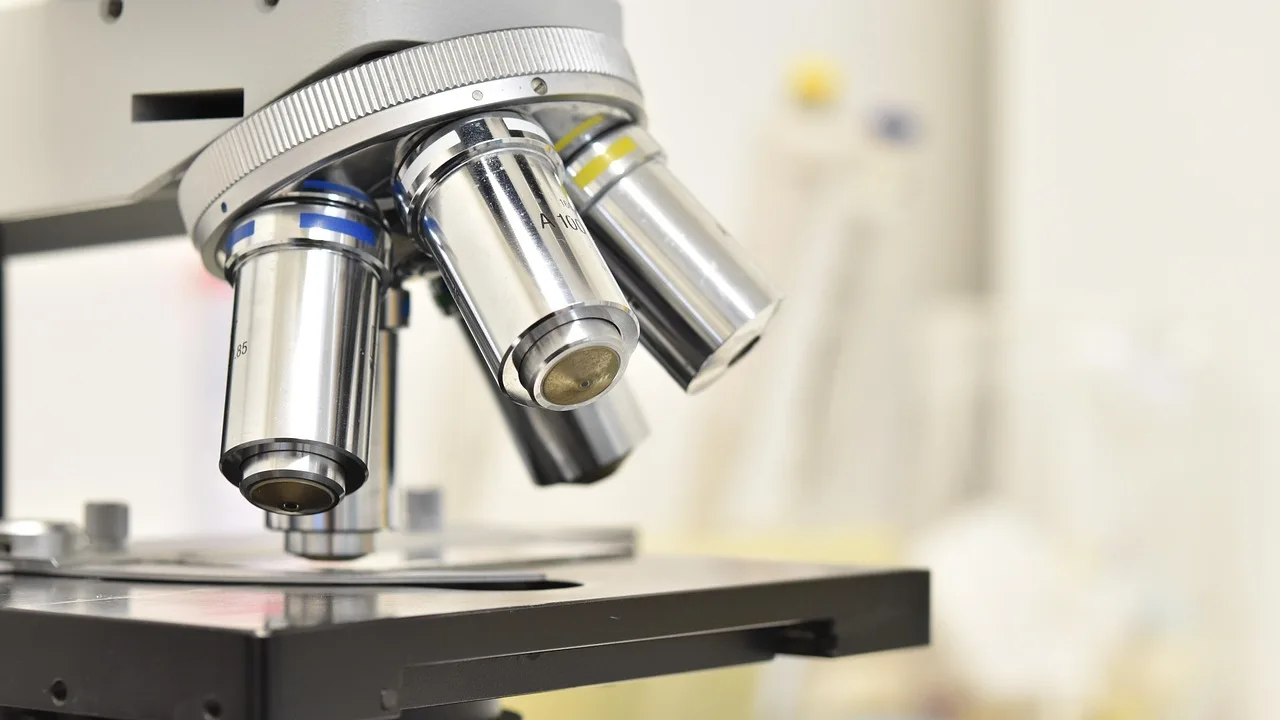

Under a polarized light microscope, urate crystals appear as distinctive needle-shaped structures that show specific properties (negative birefringence). The presence of these crystals confirms a gout diagnosis.

Joint fluid analysis can also:

• Rule out infection (through bacterial culture)
• Check for other crystal types (like calcium pyrophosphate in pseudogout)
• Assess inflammatory markers

Accuracy and Limitations

• Accuracy: When properly performed and analyzed, joint fluid analysis is extremely accurate (sensitivity and specificity >95%)
• Limitations:
  • Requires skilled technicians for proper interpretation
  • May be difficult to perform on small joints
  • Can be uncomfortable
  • Not all healthcare facilities have polarized microscopy readily available
  • May not show crystals during periods between flares

When It's Recommended

Joint aspiration is particularly recommended:

• For first-time gout attacks
• When the diagnosis is uncertain
• When infection needs to be ruled out
• Before starting long-term urate-lowering therapy

Blood Tests: Beyond Uric Acid

Serum Uric Acid Testing

What It Is

A blood test that measures the level of uric acid in your bloodstream.

How It's Performed

A standard blood draw from a vein, usually in your arm.

What It Shows

Your blood uric acid level at a specific point in time. Normal values typically range from:

• 3.5-7.2 mg/dL for men
• 2.6-6.0 mg/dL for women

Values vary slightly between laboratories.

Interpretation Challenges

While elevated uric acid (hyperuricemia) is necessary for gout development, the relationship between blood levels and diagnosis is complex:

• Many people with hyperuricemia never develop gout
• Some people have normal uric acid levels during acute gout attacks
• Uric acid levels can fluctuate significantly over time
• Certain medications and conditions can affect uric acid levels

When It's Useful

• Monitoring response to urate-lowering therapy
• Risk assessment in family members of gout patients
• Supporting evidence for diagnosis when combined with clinical symptoms
• Guiding treatment decisions

Additional Blood Tests

Several other blood tests are often performed alongside uric acid measurement:

Kidney Function Tests

• Creatinine and blood urea nitrogen (BUN) assess kidney function
• Important because kidney disease can both cause and result from gout
• Helps determine appropriate medication choices and dosages

Liver Function Tests

• Assesses liver health before starting certain medications
• Some gout treatments (like allopurinol) require dose adjustment for liver impairment

Inflammatory Markers

• Erythrocyte sedimentation rate (ESR) and C-reactive protein (CRP)
• May be elevated during acute gout flares
• Help monitor overall inflammation levels

Imaging Studies: Visualizing Joint Damage

Various imaging techniques can help diagnose gout, particularly in chronic cases or when joint aspiration isn't possible.

X-rays

What They Show

• Normal in early or acute gout
• In advanced/chronic gout, may show:
  • Bone erosions with overhanging edges ("rat bite" erosions)
  • Joint space narrowing
  • Bone proliferation
  • Soft tissue swelling

Limitations

• Not sensitive for early diagnosis
• Changes typically only visible after years of recurrent attacks
• Cannot directly visualize urate crystals

When They're Useful

• Assessing chronic joint damage
• Differentiating from other forms of arthritis
• Planning surgical interventions for severely damaged joints

Ultrasound

What It Shows

• The "double contour sign" (bright line on the surface of cartilage)
• Tophi (crystal deposits) that may not be visible externally
• Soft tissue inflammation
• Joint effusions (fluid accumulation)

Advantages

• No radiation exposure
• Quick and relatively inexpensive
• Can be used to guide joint aspiration
• Higher sensitivity than X-rays for early gout changes

Limitations

• Operator-dependent (requires skilled technician)
• Less effective for deeper joints
• Not as widely available as X-rays

Dual-Energy CT (DECT) Scan

What It Is

A specialized form of CT scanning that can differentiate materials based on how they absorb different X-ray energy levels.

What It Shows

• Can specifically identify and color-code urate crystal deposits
• Shows both the location and volume of crystal deposits
• Can detect deposits in multiple joints simultaneously
• Visualizes deposits even in non-inflamed states

Advantages

• Highly specific for urate crystals
• Can detect "silent" deposits in asymptomatic joints
• Useful for monitoring crystal dissolution during treatment
• Particularly valuable when joint fluid analysis isn't possible

Limitations

• Limited availability
• Higher radiation exposure than conventional X-rays
• Higher cost
• Not suitable for pregnant women

MRI (Magnetic Resonance Imaging)

What It Shows

• Soft tissue inflammation
• Joint effusions
• Bone marrow edema
• Synovial inflammation
• Early erosive changes

When It's Used

• Rarely used specifically for gout diagnosis
• May be performed when other conditions are suspected
• Helpful for evaluating extent of damage in complex cases

Putting It All Together: The Diagnostic Approach

Most rheumatologists follow a stepwise approach to gout diagnosis:

For First Presentation

1. Clinical evaluation: Detailed history and physical examination
2. Joint aspiration (if possible): The preferred diagnostic method
3. Blood tests: Including uric acid and inflammatory markers
4. Basic imaging: Usually X-rays to assess for chronic changes

For Difficult or Atypical Cases

1. Advanced imaging: Ultrasound or DECT scan
2. More extensive blood work: To rule out other conditions
3. Specialist consultation: Typically with a rheumatologist

For Known Gout (Monitoring)

1. Regular uric acid testing: Typically every 2-4 weeks when starting treatment, then every 6-12 months once stable
2. Periodic kidney and liver function tests: Especially for those on urate-lowering therapy
3. Occasional imaging: To assess crystal dissolution and joint damage

Clinical Diagnostic Criteria: When Testing Is Limited

When definitive testing (especially joint fluid analysis) isn't available, clinicians may use established diagnostic criteria. The most widely accepted are the 2015 ACR/EULAR criteria, which assign points based on:

• Pattern of joint involvement
• Characteristics of symptomatic episodes
• Timing of symptom onset/resolution
• Presence of tophi
• Uric acid levels
• Joint fluid analysis results (if available)
• Imaging findings

A score of ≥8 points is considered diagnostic for gout.

Patient Experience: What to Expect

For Joint Aspiration

• Pain level: Mild to moderate discomfort during the procedure
• Time involved: 15-30 minutes total, including preparation
• Recovery: Minimal; may have soreness for 1-2 days
• Preparation: None typically required
• Aftercare: Keep the area clean and dry; avoid strenuous activity for 24 hours

For Blood Tests

• Pain level: Minor discomfort from needle stick
• Time involved: 5-10 minutes
• Preparation: May need to fast for 8-12 hours (if other blood tests are being done)
• Results timeline: Usually available within 1-3 days

For Imaging

• X-rays: Quick (5-10 minutes), painless
• Ultrasound: Painless, though pressure on an inflamed joint may cause discomfort
• DECT: Similar to regular CT scan; lie still for 5-15 minutes
• MRI: Noisy, requires lying still in an enclosed space for 30-60 minutes

Taking an Active Role in Your Diagnosis

To help ensure accurate diagnosis:

1. Track your symptoms: Document when attacks occur, which joints are affected, and how long they last
2. Document triggers: Note any foods, activities, or medications that seem to precede attacks
3. Take photos: Visual documentation of redness and swelling during flares can be helpful
4. Prepare questions: Write down questions about testing procedures and results
5. Consider timing: If possible, seek medical attention during an active flare
6. Be patient: Gout diagnosis sometimes requires multiple visits and tests
7. Seek expertise: Consider requesting a referral to a rheumatologist, especially for complex cases

Conclusion: The Value of Accurate Diagnosis

While the testing process may seem extensive, an accurate gout diagnosis is crucial for proper treatment. Misdiagnosis can lead to inappropriate medications, unnecessary side effects, and continued joint damage.

The good news is that once properly diagnosed, gout is one of the most treatable forms of arthritis. With appropriate management based on accurate testing, most people can achieve excellent symptom control and prevent long-term joint damage.
